Friend Request List Page

tip

This feature is supported starting from version 5.12.0.

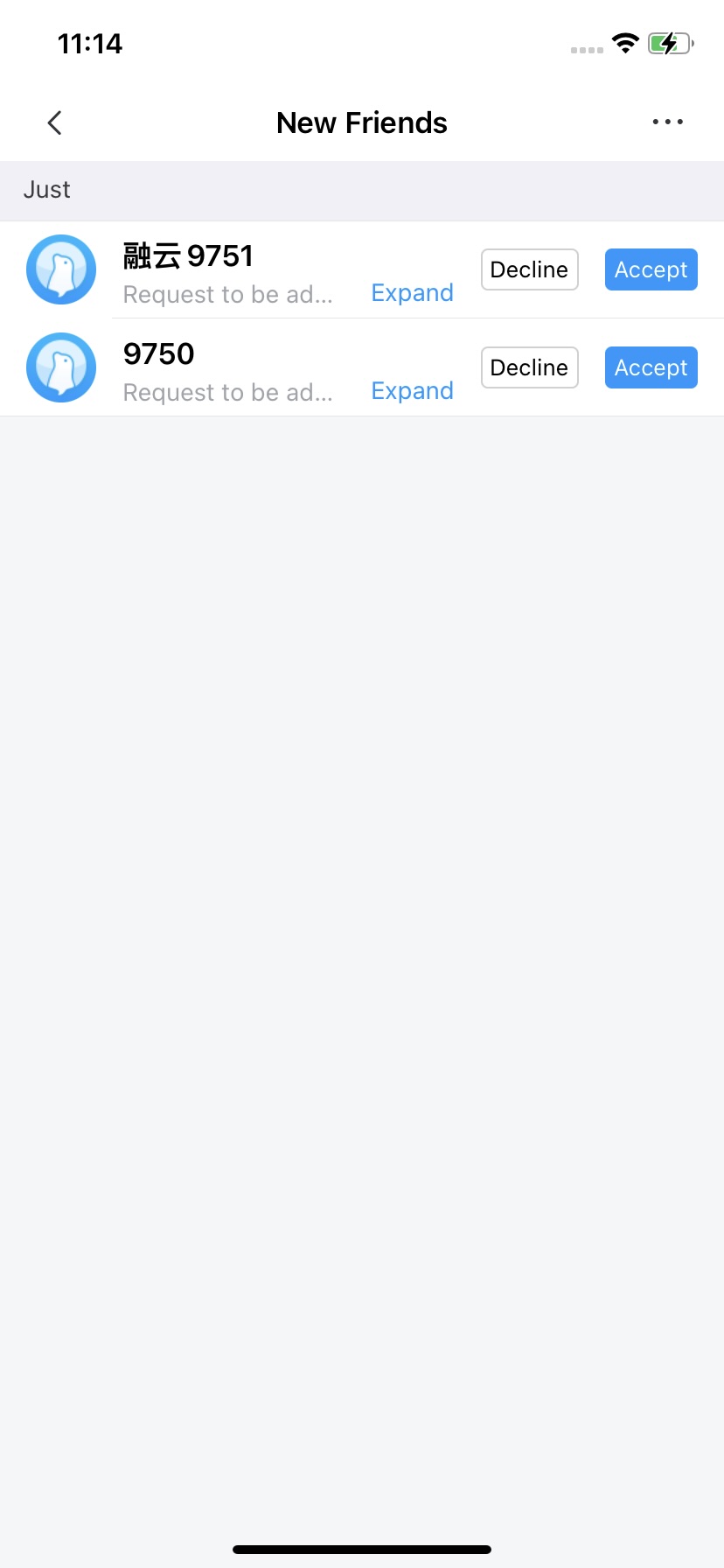

The friend request list page displays all friend requests on the current user's device. Upon entering this page, the IMKit SDK automatically retrieves friend request data from the database and sorts it chronologically.

tip

Friend request lists expire after 7 days. Expired requests require reinitiation and won't sync across multiple devices.

IMKit provides RCApplyFriendListViewController, a friend list page class based on UIKit's UITableView.
This page typically consists of a navigation bar and a friend request list section.

Initialization

Initialize the friend list page by calling the RCApplyFriendListViewController constructor. Note: You need to create an RCApplyFriendListViewModel object as the business logic handler for RCApplyFriendListViewController.
RCApplyFriendSectionItem objects are used to group friend requests by time intervals.

Parameters

Parameter	Type	Description
viewModel	RCApplyFriendListViewModel	Business logic handler for RCApplyFriendListViewController. Manages UI configuration and data retrieval.
items	NSArray <RCApplyFriendSectionItem *>*	Grouping model for friend requests. Creates different RCApplyFriendSectionItem objects to categorize data by time intervals.
option	RCPagingQueryOption	Query configuration.
types	NSArray<NSNumber *> *	List of friend request types RCFriendApplicationType. Example: @[@(RCFriendApplicationTypeSent),@(RCFriendApplicationTypeReceived)]
status	NSArray<NSNumber *> *	List of friend request statuses RCFriendApplicationStatus. Example: @[@(RCFriendApplicationStatusUnHandled),@(RCFriendApplicationStatusAccepted),@(RCFriendApplicationStatusRefused),@(RCFriendApplicationStatusExpired)].

Sample Code

- (void)showFriendApplyWithController:(UIViewController *)controller {
    NSMutableArray *sections = [NSMutableArray array];
    RCFriendApplyItemFilterBlock block = ^BOOL(RCApplyFriendCellViewModel *obj, NSInteger start, NSInteger end, BOOL * _Nonnull stop) {
        if (obj.application.operationTime >= start && obj.application.operationTime < end) {
            return YES;
        }
        return NO;
    };

    RCApplyFriendSectionItem *justNow = [[RCApplyFriendSectionItem alloc] initWithFilterBlock:block compareBlock:nil];
    justNow.title = @"Just now";
    justNow.timeStart = [self startOfToday];
    justNow.timeEnd  = [[NSDate date]timeIntervalSince1970] * 1000;
    [sections addObject:justNow];

    RCApplyFriendSectionItem *oneDays = [[RCApplyFriendSectionItem alloc] initWithFilterBlock:block compareBlock:nil];
    oneDays.title = @"Last 24 hours";
    oneDays.timeStart = [self startTimeOfDaysBefore:-1];
    oneDays.timeEnd  = [self startOfToday];
    [sections addObject:oneDays];

    RCApplyFriendSectionItem *threeDays = [[RCApplyFriendSectionItem alloc] initWithFilterBlock:block compareBlock:nil];
    threeDays.title = @"Last 3 days";
    threeDays.timeStart = [self startTimeOfDaysBefore:-4];
    threeDays.timeEnd  = [self startTimeOfDaysBefore:-1];
    [sections addObject:threeDays];

    RCApplyFriendSectionItem *longAgo = [[RCApplyFriendSectionItem alloc] initWithFilterBlock:block compareBlock:nil];
    longAgo.title = @"Older than 3 days";
    longAgo.timeStart = 0;
    longAgo.timeEnd  = [self startTimeOfDaysBefore:-4];
    [sections addObject:longAgo];

    RCApplyFriendListViewModel *vm = [[RCApplyFriendListViewModel alloc] initWithSectionItems:sections option:nil types:@[] status:@[]];
    RCApplyFriendListViewController *listVC = [[RCApplyFriendListViewController alloc] initWithViewModel:vm];
    [self.navigationController pushViewController:listVC animated:YES];
}

- (NSInteger)startOfToday {
    NSDate *now = [NSDate date];
    NSDate *date = [[NSCalendar currentCalendar] startOfDayForDate:[NSDate date]];
    return [date timeIntervalSince1970] * 1000;
}

- (NSInteger)timeOfDaysBefore:(NSInteger)dayDiff start:(BOOL)start {
    NSDate *now = [NSDate date];
    NSDate *date = [[NSCalendar currentCalendar] dateByAddingUnit:NSCalendarUnitDay
                                                            value:dayDiff
                                                           toDate:now options:NSCalendarMatchStrictly];
    NSDate *dateStart = [[NSCalendar currentCalendar] startOfDayForDate:date];

    if (start) {
        return [dateStart timeIntervalSince1970] * 1000;
    } else {
        NSDate *dateEnd = [[NSCalendar currentCalendar] dateByAddingUnit:NSCalendarUnitDay
                                                                value:1
                                                               toDate:dateStart options:NSCalendarWrapComponents];
        return [dateEnd timeIntervalSince1970] * 1000 - 1;
    }
}

- (NSInteger)startTimeOfDaysBefore:(NSInteger)dayDiff {
    return [self timeOfDaysBefore:dayDiff start:YES];;
}

- (NSInteger)endTimeOfDaysBefore:(NSInteger)dayDiff {
    return [self timeOfDaysBefore:dayDiff start:NO];;
}

tip

Time intervals in multiple RCApplyFriendSectionItem objects must not overlap to prevent duplicate data display.

Customization

IMKit allows customization of the friend request list interface.

Custom Navigation Bar

RCApplyFriendListViewController uses the system navigation bar to display the page title. Subclass RCApplyFriendListViewController and set the title property in viewDidLoad:

- (void)viewDidLoad {
    [super viewDidLoad];
    self.title = @"Custom Title";
}

Custom Friend Request List Cell

RCApplyFriendListViewController supports cell customization. Set the delegate property of RCApplyFriendListViewModel to modify cell styles and displayed content.

1. Create RCCustomCell

@interface RCCustomCell : UITableViewCell
@property (nonatomic, strong) UILabel *titleLabel;
@property (nonatomic, strong) UILabel *contentLabel;
@end

@implementation
// Cell rendering
@end

2. Create RCCustomCellViewModel

tip

Custom CellViewModel must subclass RCApplyFriendCellViewModel.

typedef void(^RCPermanentCellViewModelBlock)(UIViewController *);
@interface RCCustomCellViewModel : RCApplyFriendCellViewModel
/// Constructor
- (instancetype)initWithTitle:(NSString *)title
                     portrait:(UIImage *)portrait
                   touchBlock:(RCPermanentCellViewModelBlock)touchBlock;
@property (nonatomic, copy) NSString *title;
@property (nonatomic, strong) UIImage *portrait;
@property (nonatomic, copy) RCPermanentCellViewModelBlock touchBlock;
@end

@implementation RCCustomCellViewModel

- (instancetype)initWithTitle:(NSString *)title
                     portrait:(UIImage *)portrait
                   touchBlock:(RCPermanentCellViewModelBlock)touchBlock{
    self = [super init];
    if (self) {
        self.title = title;
        self.portrait = portrait;
        self.touchBlock = touchBlock;
    }
    return self;
}

// Register and customize cell
- (UITableViewCell *)tableView:(UITableView *)tableView
         cellForRowAtIndexPath:(NSIndexPath *)indexPath {
    NSString *cellIdentifier = @"RCCustomCellIdentifier";
    // Register cell
    [tableView registerClass:RCCustomCell.class forCellReuseIdentifier:cellIdentifier];
    // Return cell
    RCCustomCellViewModel *cell = [tableView dequeueReusableCellWithIdentifier:cellIdentifier];
    if (!cell) {
       cell = [tableView dequeueReusableCellWithIdentifier:cellIdentifier];
    }
    // Modify UI
    cell.titleLabel.text = self.title;
    cell.contentLabel.text = self.detail;
    return cell;
}

@end

3. Set Delegate

Initialize RCApplyFriendListViewModel with its delegate:

RCApplyFriendListViewModel *viewModel = [[RCApplyFriendListViewModel alloc] initWithSectionItems:sections option:nil types:@[] status:@[]];
viewModel.delegate = self;

4. Modify Data Source

Implement delegate methods:

- (NSArray <RCApplyFriendCellViewModel *> *_Nullable)applyFriendListViewModel:(RCApplyFriendListViewModel *)viewModel
                                                    willLoadItemsInDataSource:(NSArray *_Nullable)dataSource{
        NSMutableArray *list = dataSource.mutableCopy;
        RCCustomCellViewModel *customCellVM = [[RCCustomCellViewModel alloc] initWithTitle:@"title" portrait:[UIImage imageNamed:@"newFriend"] touchBlock:^(UIViewController * vc) {
            // Handle tap event

        }];
        [list addObject:@[customCellVM]];
        return list;
}

5. Custom Cell Tap Handling

/// Configure custom tap events. Returns: Whether the app handles the event [YES: SDK skips processing, NO: SDK handles internally]
- (BOOL)applyFriendListViewModel:(RCApplyFriendListViewModel *)viewModel
                  viewController:(UIViewController*)viewController
                       tableView:(UITableView *)tableView
                    didSelectRow:(NSIndexPath *)indexPath
                   cellViewModel:(RCApplyFriendCellViewModel *)viewModel {

              }
