Streaming Messages

tip

Starting from version 5.16.1, IMKit supports built-in streaming messages for continuous reception of server messages.

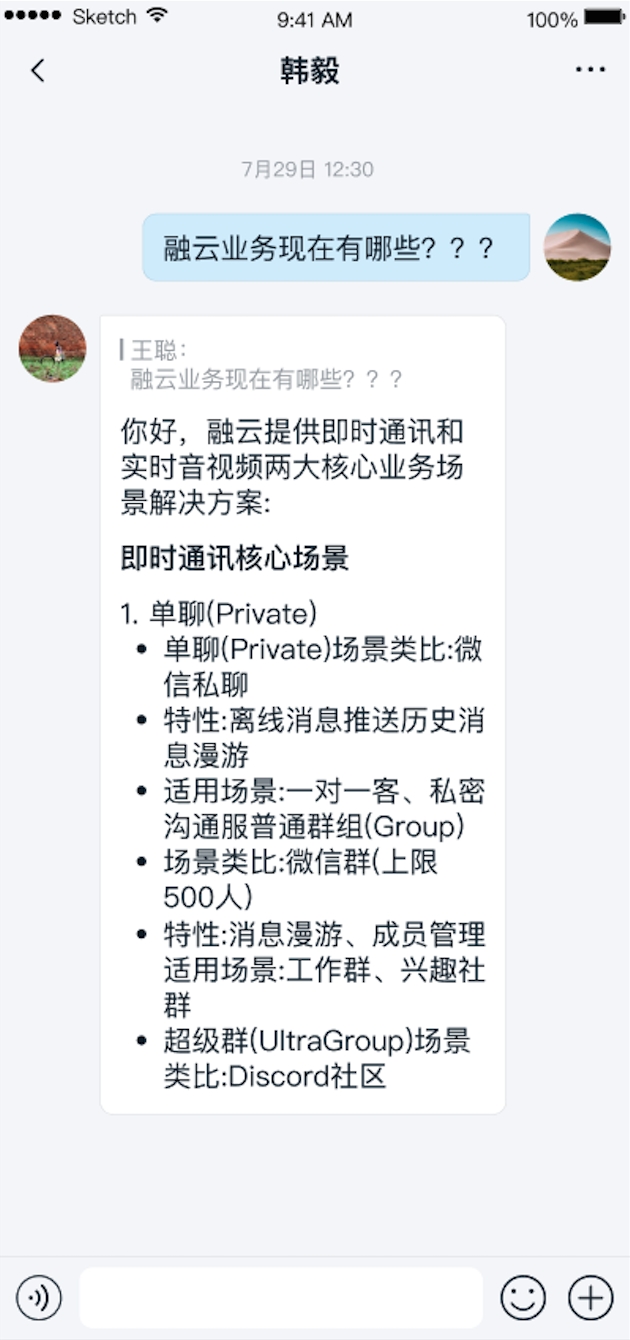

Complete Message
Figure 1: Complete Message

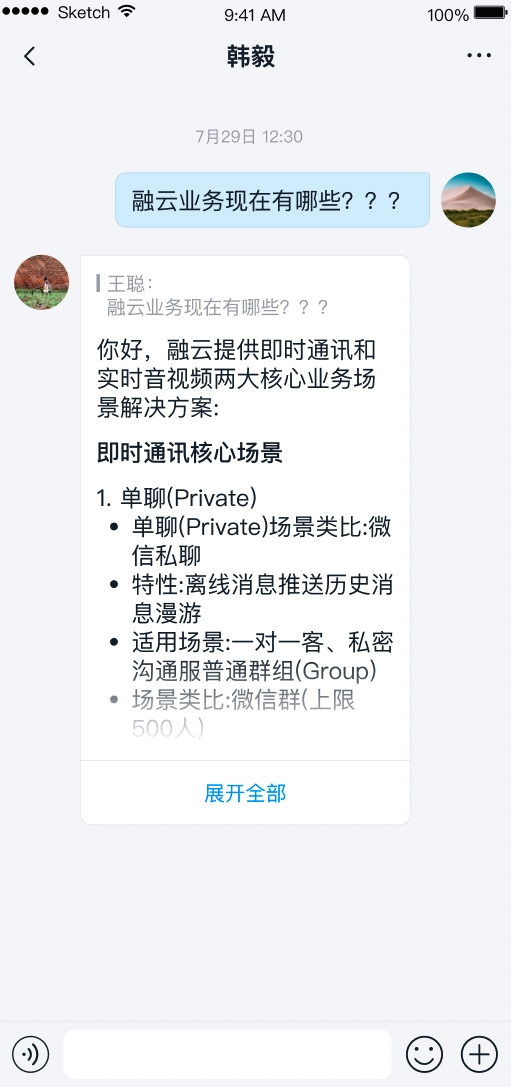

Message Summary
Figure 2: Message Summary

Limitations​

The streaming message feature currently has the following restrictions:

  • The maximum content length for a message is 10,000 characters.
  • Only supports streaming message reception for one-to-one and group chats.

Content Display​

Streaming messages support Markdown, Text, and HTML formats. For specific field values, refer to Streaming Messages. HTML format support was added in version 5.20.0.

For HTML format, pay attention to the following details. SDKs for Markdown and Text formats do not require this.

Content Security​

IMKit SDK uses the native WKWebView component to load HTML-type streaming messages but does not process the content. Developers must ensure content security.

Developers can embed CSP tags in HTML to enhance security.

tip

CSP is part of HTML and must be processed by the application server before being sent to RC servers. Use AI model formatting and system prompts to add specific content.

Sample Code

<!DOCTYPE html>
<html>
<head>
    <meta http-equiv="Content-Security-Policy"  content="default-src 'self'; script-src 'self'; img-src 'self';">
    <!-- Other content -->
</head>
<body>
    <!-- Page content -->
</body>
</html>

Dark Mode​

IMKit SDK adapts WKWebView themes using the CSS rule prefers-color-scheme, but this has system version limitations on mobile devices and depends on app theme settings.

  • iOS 13 and above: iOS IMKit supports dark mode. If HTML content includes prefers-color-scheme, IMKit and WKWebView will automatically follow light/dark themes.
  • Below iOS 13: Not supported.
tip

prefers-color-scheme is part of HTML and must be processed by the developer's AppServer before being sent to RC servers. Use AI model formatting and system prompts to add specific content.

Sample Code

@media (prefers-color-scheme: dark) {
  .day.dark-scheme {
    background: #333;
    color: white;
  }
  .night.dark-scheme {
    background: black;
    color: #ddd;
  }
}

@media (prefers-color-scheme: light) {
  .day.light-scheme {
    background: white;
    color: #555;
  }
  .night.light-scheme {
    background: #eee;
    color: black;
  }
}
