Group Conversations by Type

The IMKit SDK supports grouping (collapsing) conversations by type in the conversation list. When grouping is enabled, conversations of the specified type are displayed as a single aggregated entry in the list. By default, the conversation list displays all local conversations in a flat structure.

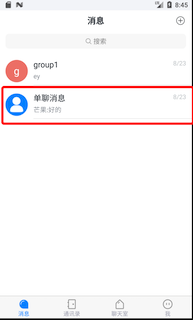

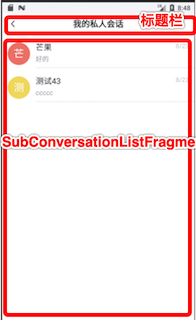

The diagram below illustrates the effect of grouping one-to-one chat conversations. In the conversation list, all one-to-one chats are collapsed into a One-to-One Chats entry (left). Tapping it navigates to the grouped conversation list (right).

tip

The IMKit SDK includes a title bar implementation in the default grouped conversation page Activity (RongSubConversationListActivity). If you're building a grouped conversation list page based on Fragment, implement the title bar yourself.

Limitations

• Pinning is not supported for grouped conversation entries in the conversation list.
• Grouping is only supported by conversation type, not by conversation ID.

Configure Grouped Conversation Types

The grouped conversation feature supports one-to-one chats, group chats, and system conversations. You can implement a custom data processor by extending BaseDataProcessor and providing it to IMKit before opening the conversation list.

1. Declare a custom data processor class MyAggregateDataProcessor that extends the SDK's BaseDataProcessor. Override the isGathered method to return true for conversation types that should be grouped. The example below groups all system conversations.

   public class MyAggregateDataProcessor extends BaseDataProcessor<Conversation> {
       /**
       * Define supported conversation types for the custom conversation list page. Here we enable one-to-one, group, and system conversations.
       */
       @Override
       public Conversation.ConversationType[] supportedTypes() {
           Conversation.ConversationType[] types = {Conversation.ConversationType.PRIVATE, Conversation.ConversationType.GROUP, Conversation.ConversationType.SYSTEM};
           return types;
       }

       /**
       * Define which conversations to group. Here we group one-to-one chats.
       */
       @Override
       public boolean isGathered(Conversation.ConversationType type) {
           if (type.equals(Conversation.ConversationType.PRIVATE)) {
               return true;
           } else {
               return false;
           }
       }

   }

2. Before opening the conversation list, set the data processor using setDataProcessor.

   RongConfigCenter.conversationListConfig().setDataProcessor(new MyAggregateDataProcessor());

Grouped Conversation List Page

When grouping is enabled, conversations of the specified type are collapsed into a grouped conversation entry (GatheredConversation) in the list. Tapping this entry navigates to the grouped conversation list page.

IMKit provides grouped conversation list pages implemented as both an Activity and a Fragment.

• Activity-based: IMKit includes a default grouped conversation list page RongSubConversationListActivity, which displays a title bar and a grouped conversation list. The SDK navigates to this Activity by default when opening a grouped conversation list.
• Fragment-based: You can use IMKit's SubConversationListFragment to build a custom grouped conversation list page. Note that you must register your custom conversation list Activity with the IMKit SDK to replace the default grouped conversation list Activity.

Launch the Default Grouped Conversation List Page

To navigate to the grouped conversation list Activity from other parts of your app, use IMKit's built-in Activity router RouteUtils.

tip

If you've built a custom conversation list Activity, you must register it with RouteUtils before using this method. Otherwise, the SDK will navigate to the default RongSubConversationListActivity.

Parameters

Parameter	Type	Description
context	Context	Activity context
type	Conversation.ConversationType	Conversation type
title	String	Page title. If empty, the default title "Conversation List" is displayed.

Example Code

RouteUtils.routeToSubConversationListActivity(context, conversationType, title);

tip

The BaseDataProcessor abstract class is supported in stable versions of the 5.1.3.x series and all versions from 5.1.5 onward. For other versions, implement a DataProcessor class using the DataProcessor interface. For details, see Custom Data Processing.

Build a Grouped Conversation List Activity Using Fragment

If the default RongSubConversationListActivity doesn't meet your needs, we recommend using IMKit's SubConversationListFragment to build a custom grouped conversation list page.

tip

Your custom grouped conversation list Activity must be registered with the IMKit SDK to replace the default grouped conversation list Activity.

1. Integrate IMKit's grouped conversation list Fragment into your app Activity. The example below declares a new MyAggregateConversationListActivity.

   <activity
       android:name="xxx.xxx.MyAggregateConversationListActivity"
       android:screenOrientation="portrait"
       android:windowSoftInputMode="stateHidden|adjustResize">
       <intent-filter>
           <action android:name="android.intent.action.VIEW" />
           <category android:name="android.intent.category.DEFAULT" />
           <data
               android:host="${applicationId}"
               android:pathPrefix="/subconversationlist"
               android:scheme="rong" />
       </intent-filter>
   </activity>

2. Implement the grouped conversation list layout. The example uses activity_subconversation_list.xml.

   <?xml version="1.0" encoding="utf-8"?>
   <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
           android:orientation="vertical"
           android:layout_width="match_parent"
           android:layout_height="match_parent">
           <FrameLayout
               android:id="@+id/container"
               android:layout_width="match_parent"
               android:layout_height="match_parent" />
   </LinearLayout>

3. Extend IMKit's SubConversationListFragment to create a subclass, such as AppSubConversationListFragment. Instantiate and use SubConversationListFragment in the onCreate method of MyAggregateConversationListActivity.

   SubConversationListFragment subconversationListFragment = new AppSubConversationListFragment();
   FragmentManager manager = getSupportFragmentManager();
   FragmentTransaction transaction = manager.beginTransaction();
   transaction.replace(R.id.container, subconversationListFragment);
   transaction.commit();

4. Register your custom grouped conversation list Activity with RouteUtils to replace IMKit's default implementation. This only needs to be done once in the app's lifecycle, in the main process.

   Parameters

   Parameter	Type	Description
   activityType	RongActivityType	IMKit's built-in Activity type enum. Here, use RongActivityType.SubConversationListActivity.
   className	Class<? extends Activity>	Your custom grouped conversation list Activity class.

   Example Code

   RouteUtils.registerActivity(RouteUtils.RongActivityType.SubConversationListActivity, MyAggregateConversationListActivity.class);

   After registration, the SDK will automatically navigate to your registered Activity when a grouped conversation list is needed.

Customization

When conversations are grouped by type, the conversation list displays a grouped conversation (GatheredConversation) entry. You can customize the avatar and nickname (title) for grouped conversations.

Set Grouped Conversation Avatar

You can set a custom avatar for grouped conversations (GatheredConversation) in the conversation list. By default, the RC default avatar is used.

Parameters

Parameter	Type	Description
conversationType	ConversationType	Grouped conversation type
portraitUri	Uri	Custom avatar resource URI for the grouped conversation

Example Code

RongConfigCenter.gatheredConversationConfig().setGatherConversationPortrait(conversationType, portraitUri);

Set Grouped Conversation Title

You can set a custom title for grouped conversations (GatheredConversation) in the conversation list. If not set, the default RC title rules apply. The default title varies by conversation type, as shown below:

Grouped Conversation Type	Title	Resource Name
One-to-One Chat	"One-to-One Chats"	R.string.rc_gathered_conversation_private_title
Group Chat	"Group Chats"	R.string.rc_gathered_conversation_group_title
System	"System Messages"	R.string.rc_gathered_conversation_system_title

To change the grouped conversation title, call the following method before opening the conversation list:

Parameters

Parameter	Type	Description
conversationType	ConversationType	Grouped conversation type
title	String	Custom grouped conversation title

Example Code

RongConfigCenter.gatheredConversationConfig().setConversationTitle(conversationType, title);

If you use IMKit's default grouped conversation page Activity (RongSubConversationListActivity), the grouped conversation title is also displayed in the title bar.
